Cryo Cuff Cold Therapy System Knee Therapy Pain Relief Compression / Cold Compression

Cryo Cuff Cold Therapy System Knee Therapy Pain Relief   Product Description EVERCRYO Knee Cryo Cuff Cold Therapy System integrated cold and compression function to reduce pain and swelling from a sports or activity injury to soft tissues and recommended by orthopedic surgeons following surgery. The cryo cuff therapy system provides both gravity and motorized cold and compression therapy for flexibility of care. The optional automatic circulation system provides automated cold and compression therapy, with simplicity of design and ease-of- use operation.

Application The Evercryo series cryo cuff cooler is a new medical device that combines compression with cold to control swelling, edema, hematoma, hemarthrosis, and pain in the joints . Simplicity of design and ease of operation makes it ideal for the medical institutions,plastic operation, gym, home and so on.

Such as follows:
Post Operative
Plastic Surgery
General Surgery
Arthroscopic Procedures
Reconstructive Procedures
Chronic Pain
Physical Therapy

Product Features

1. The cold therapy system combine cold and compression therapy all in one


2. Two kinds of cold and compression therapy ways: gravity and motorized for flexibility of care

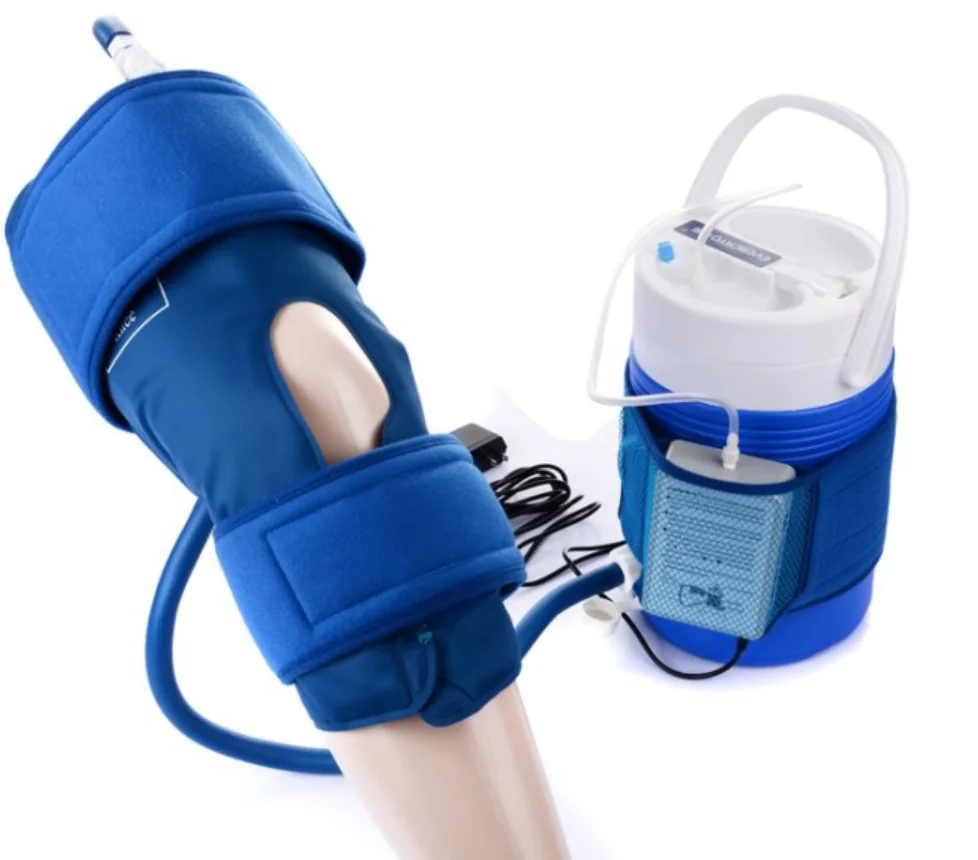

3. An Optional automatic circulation system provides automated compression and cyclically cold therapy

Operating principle:



The cooler is filled with water and ice and the cuff is placed on the injured part. Elevating the cooler forces cold water flow into the cuff and compresses the injured part. The higher the cooler is elevated above the injured part the more water will flow in to the cuff. (or use automatic circulation system to pump ice water into cuff automatically and circularly)



Usage



1. Prepare cooler: Connect the blue tube to the cooler. Add cold water to the line inside the cooler, then add ice to the top of the cooler. Wait 5 minutes with occasional shaking to chill the water.

2. Apply the cuff: Always apply it empty. Secure the top strap, snug but not tight. Adjust the front opening so the cuff fits the slightly injured part. Secure the bottom strap loosely. Do not stretch the elastic.

3. Fill and pressurize: Connect the tube to the cuff. Open the air vent on the cooler. Elevate the cooler and hold for about 30 seconds to pressurize the cuff. The cooler can now be disconnected by pressing the metal tab on the quick – disconnect while the cooler is elevated to seal the pressure.

4.Rechill: Rechill the water once an hour or as needed. Connect the tube,lower the cooler and the warmed water will drain from the cuff into the cooler. Wait a couple of minutes for the water to mix with the ice and rechill, then elevate the cooler and repeat the filling process.

(Step 3) Clean & Storage: When you are not using the cuff and cooler, you need to drain all the water out of the cuff, tubes, and the cooler.

1. Connect the tubes and drain the cuff into the cooler.

2. Take the tubes apart at the metal tab. Lift the cuff tube up while pressing on the metal tab to drain out any water in the tube.

3. Drain the water out of the cooler. Lift the tube on the cooler to drain the water out of it.

4. Leave the cover off the cooler unit to let it dry.

 Special Notes:


1. Check the skin under the cuff to be sure it is not damaged by the cold.


2. Do not raise the cooler higher than 15 inches above the cuff because it may cause too much pressure in the cuff.

3.If you have any increase in pain, numbness or tingling of the arm, check that the cuff is not too tight, or too full. If you adjust the cuff, and the pain, numbness or tingling do not ease, call your doctor.

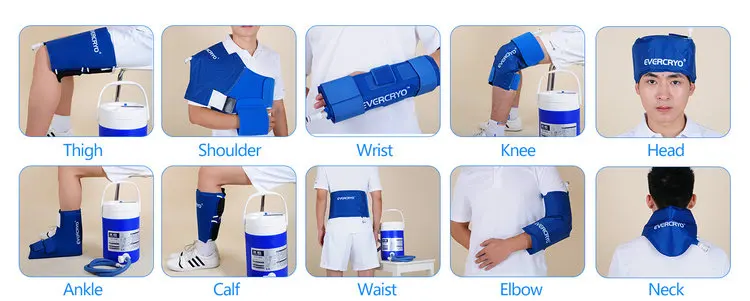

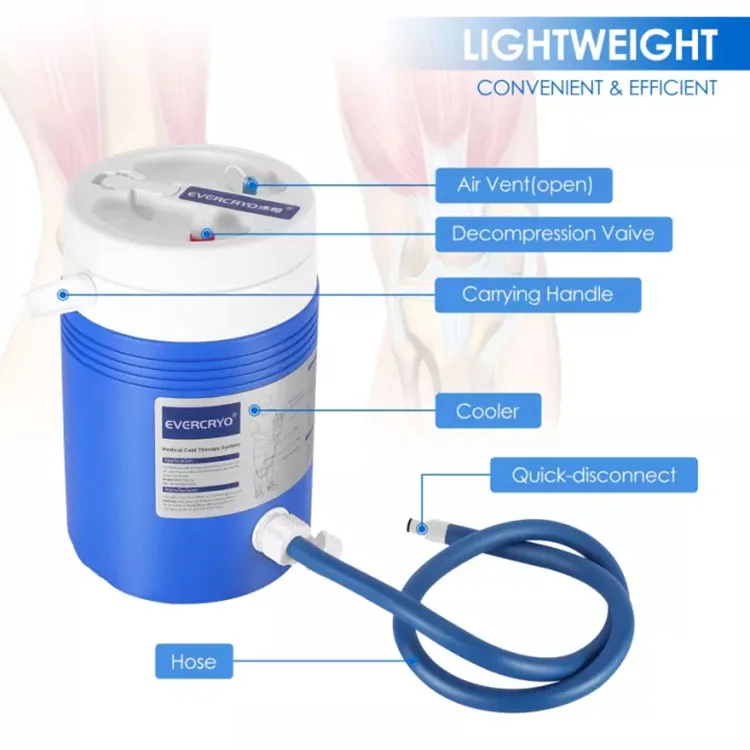

Main components are cooler and cuff, one cooler can use together with different models' cuff. there are 9 different cuffs for each body part.

Delivery time: 10 to 12 days after payment

Warranty: One year
